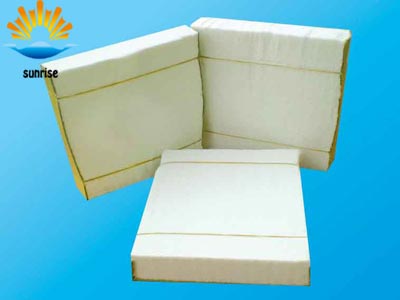

Ceramic Fiber Module

Ceramic Fiber Module

Classification temperature ( °C) :1260

Density ( Kg/m3):160 , 192 , 210

Linear shrinkage (%) :(1100℃x 24 hrs)1.0

Available size( mm/pc ):300*300*150

Thermal conductivity Kcal/mh °C (W/mK) :ASTM C201 (160 kg/m3)

mean 400 °C:0.09



Get a Quotation Send Message

Overview

Ceramic Fiber Module is made of blanket fan folded, or pre-cut blanket stack bonded to form a module, to form a module with cut edges exposed.


 Characteristic:
♦  Low density and low thermal conductivity
♦  To be secured by concealed anchor
♦  Greater mechanical strength
♦  Shorter heat up and cool down time
♦  Resilience and resistance to thermal shock
♦  Flexible and easy to cut or install
♦  Asbestos free


 Application:
♦  High gas flow velocity furnace or duct lining
♦  Direct exposure to heat as furnace hot face lining

Technical Data

  1260 Saber block 1400 Saber block 1260 Uniblock 1400 Uniblock
Classification temperature (°C) 1260 1400 1260 1400
Density ( Kg/m3) 160 , 192 , 210
Linear shrinkage (%) (1100℃x 24 hrs)1.0 (1200 ℃x 24 hrs) 1.0 ( 1100 ℃ x 24 hrs ) 1.0 (1200℃ x 24 hrs) 1.0
Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201 (160 kg/m3)
mean 400 °C 0.09   0.09
mean 600 °C 0.14 0.14 0.14 0.14
mean 800 °C 0.21 0.21 0.20 0.20
mean1000 °C   0.26   0.28
Available size( mm/pc ) 300*300*150 , 200 , 250 , 300

  1260 Unifelt 1400 Unifelt 1500 Unifelt 1600 Unifelt
Classification temperature (°C) 1260 1400 1500 1600
Density ( Kg/m3) 128 , 160
Linear shrinkage (%) ( 900°C x 24 hrs ) 1.3 (1200°C x 24 hrs) 1.5 ( 1300°C x 24 hrs ) 1.2 (1400°C x 24 hrs) 1.1
Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201 (160 kg/m3)
  130 kg/m3 160 kg/m3 160 kg/m3 130 kg/m3
mean 400 °C 0.12
mean 600 °C 0.17 0. 14 0.13 0.14
mean 800 °C 0.25 0.2 0.17 0.21
mean1000 °C   0.28 0.24 0.27
Available size( mm/pc ) 300*300*50 , 75

Note: Data are average results of standard tests which are subject to variation and should not be used as specification
